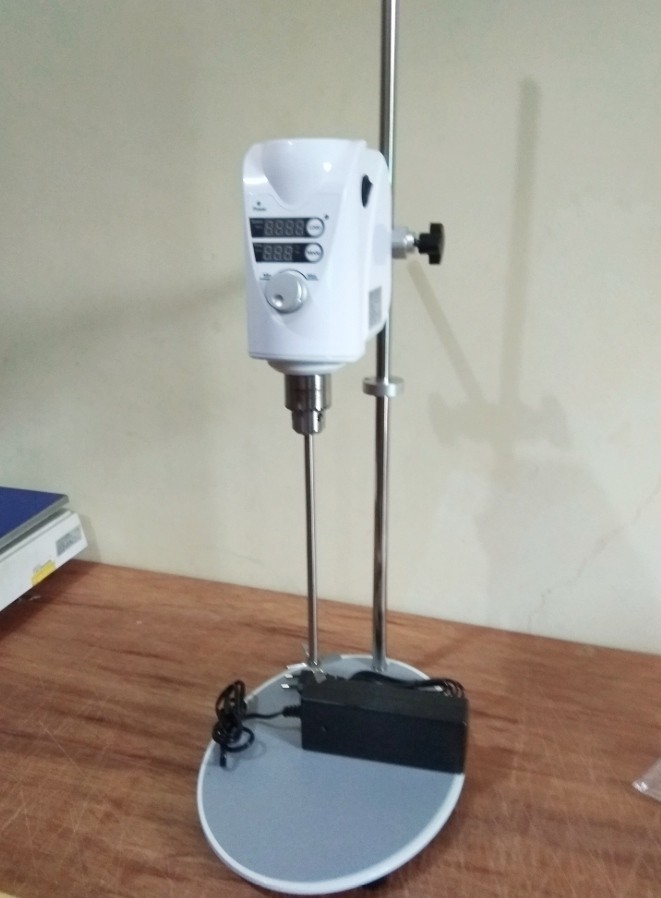

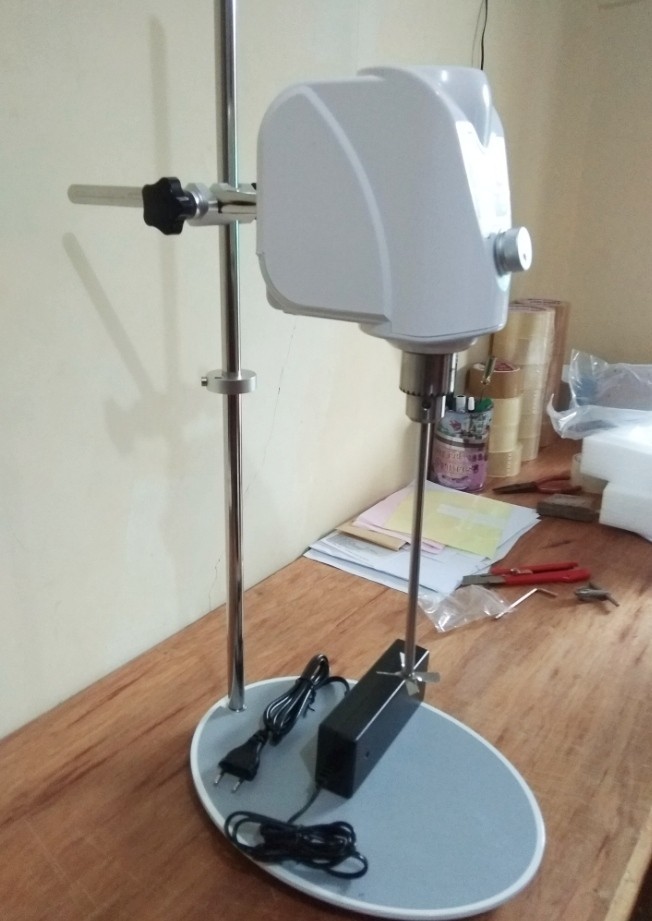

Digital Overhead Stirrer MS-40 with Support stand and Stirring Rods MIULAB

Digital Overhead Stirrer
Brand Miu Lab
Model MS-40

Product description: MS-40 Digital Overhead Stirrer is suitable for middle and high viscosity liquid or solid-liquid mixture. It is mainly used in chemical synthesis, pharmaceutical, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology and so on.

1. Anti-spill samples, smooth start, effectively prevent spilling.

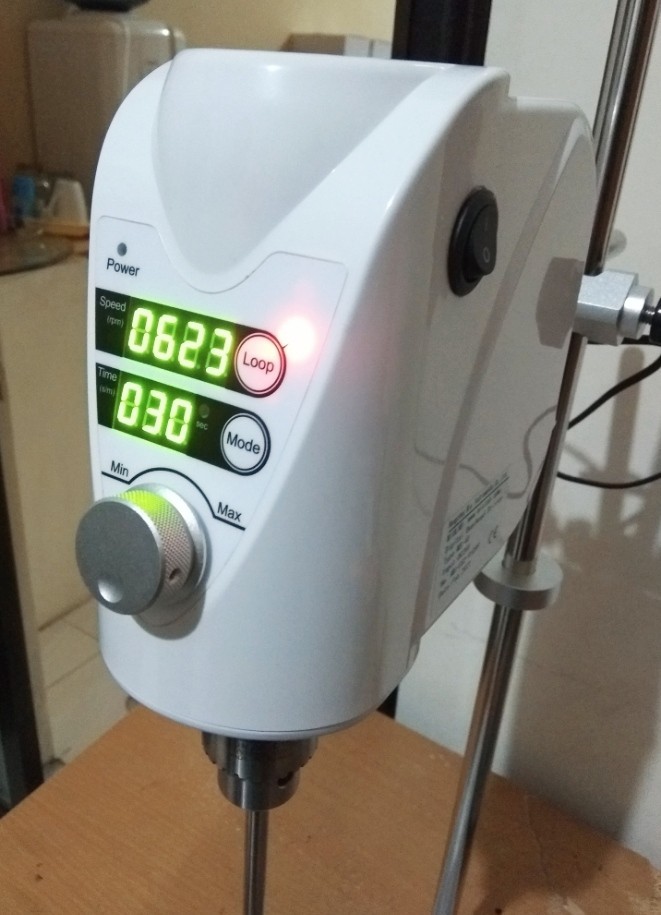

2. LED with backlit displays real-time speed and torque. It is convenient and accurate for readings, easy to operate.
3. Precise control speed. Control accuracy is±3rpm. Accurately display the actual speed actual value / set value.
4. Constant speed.Torque can be adjusted automatically according to the change of sample viscosity to keep the set speed.
5. Full explosion-proof equipment. Explosion-proof DC brushless motor to ensure lab safe.
6. Closed shell to prevent liquid from entering the machine interior for corrosion circuit, ensure safe operation. Long time continuous and stable operation.
7. Overload protection and motor protection. When overload, short circuit and abnormal speed occur, it will cut off the circuit and alarm automatically to ensure safe running and lab safety.
8. Clockwise & counterclockwise stirring exchange mode. Stirring effect is better.

Model MS-40
Max Stir Capacity (H2O) 40L
Speed Range 50 ~2200rpm
Speed Control Accuracy ±3rpm
Speed Display Accuracy ±1 rpm
Time Range 30s ~999min
Max. Torque 60 N.cm
Max. Viscosity 50000mPas
Drill Chuck Clamping
Diameter Range 0.5 ~10mm
RS232 Connector yes
Voltage VD 24V, 50/60Hz
Power 130W
Dimension (WxDxH) 83 x 220 x 186mm

Optional Stirring rods
Type MS-C
Propeller Type 4 blade
Diameter Propeller 50 mm
Diameter Stirring rods 8 mm
Length Stirring rods 400 mm
Max Speed 2000 rpm

Height Rods Stand 80 cm
Diameter 16 mm
