IKA Overhead Stirrers RW 20 Digital Package 0009011600

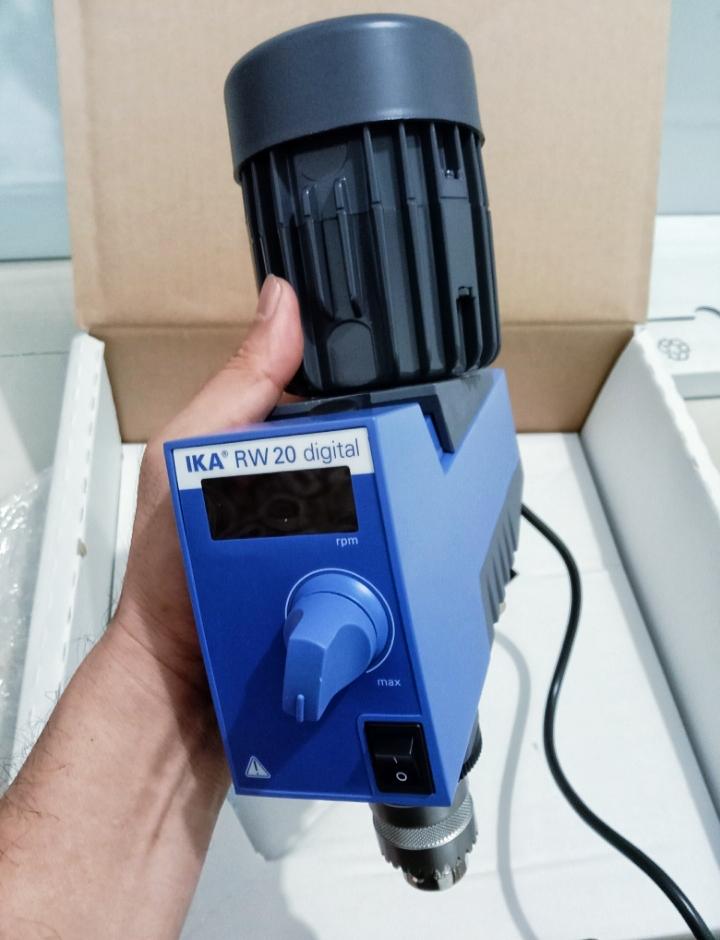

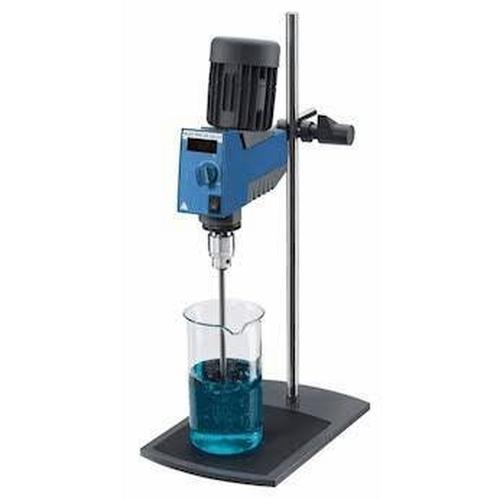

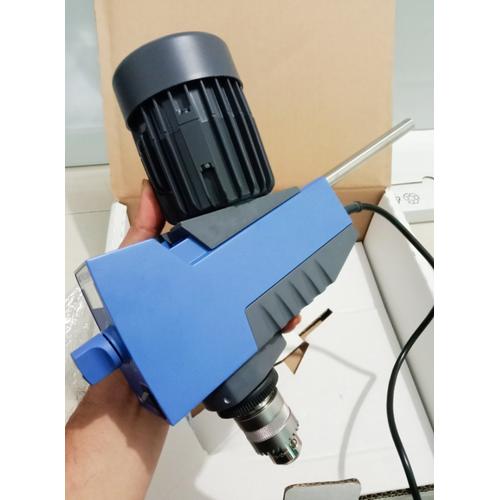

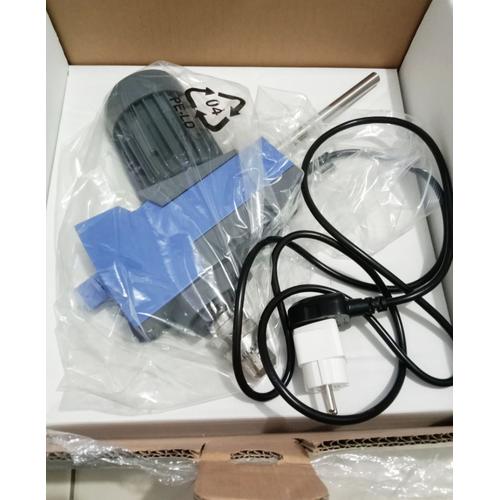

RW 20 digital Package The bestseller in the laboratory: With digital display Robust, slimline, ergonomic design Technical improvements on the trusted RW 20 series designs With constant power-drive Two speed ranges for universal use from 60 - 2.000 rpm Push-through agitator shafts (only when stationary) For stirring quantities of up to 20 l (H2O) Scope of delivery RW 20 digital R 1826 Plate stand R 182 Boss head clamp R 1342 Propeller stirrer, 4-bladed Technical Data Stirring quantity max. per stirring position (H2O) 20 l Motor rating input 70 W Motor rating output 35 W Speed display LED Speed range 60 - 2000 rpm Viscosity max. 10000 mPas Output max. at stirring shaft 26 W Permissible ON time 100 % Torque max. at stirring shaft 150 Ncm Torque max. at stirring shaft at 60 1/min (overload) 300 Ncm Torque max. at stirring shaft at 100 1/min 150 Ncm Torque max. at stirring shaft at 1.000 1/min 24 Ncm Speed range I (50 Hz) 60 - 500 rpm Speed range II (50 Hz) 240 - 2000 rpm Speed range I (60 Hz) 72 - 600 rpm Speed range II (60 Hz) 288 - 2400 rpm Speed adjustment stepless Setting accuracy speed ±1 rpm Deviation of speed measurement ±30 rpm Stirring element fastening chuck Chuck range diameter 0.5 - 10 mm Hollow shaft, inner diameter 10.5 mm Hollow shaft (push-through - when stopped) yes Fastening on stand extension arm Extension arm diameter 13 mm Extension arm length 160 mm Speed control mechanical Nominal torque 1.5 Nm Dimensions (W x H x D) 88 x 294 x 212 mm Weight 3.1 kg Permissible ambient temperature 5 - 40 °C Permissible relative humidity 80 % Protection class according to DIN EN 60529 IP 20 Voltage 220 - 240 V Frequency 50/60 Hz Power input 72 W
