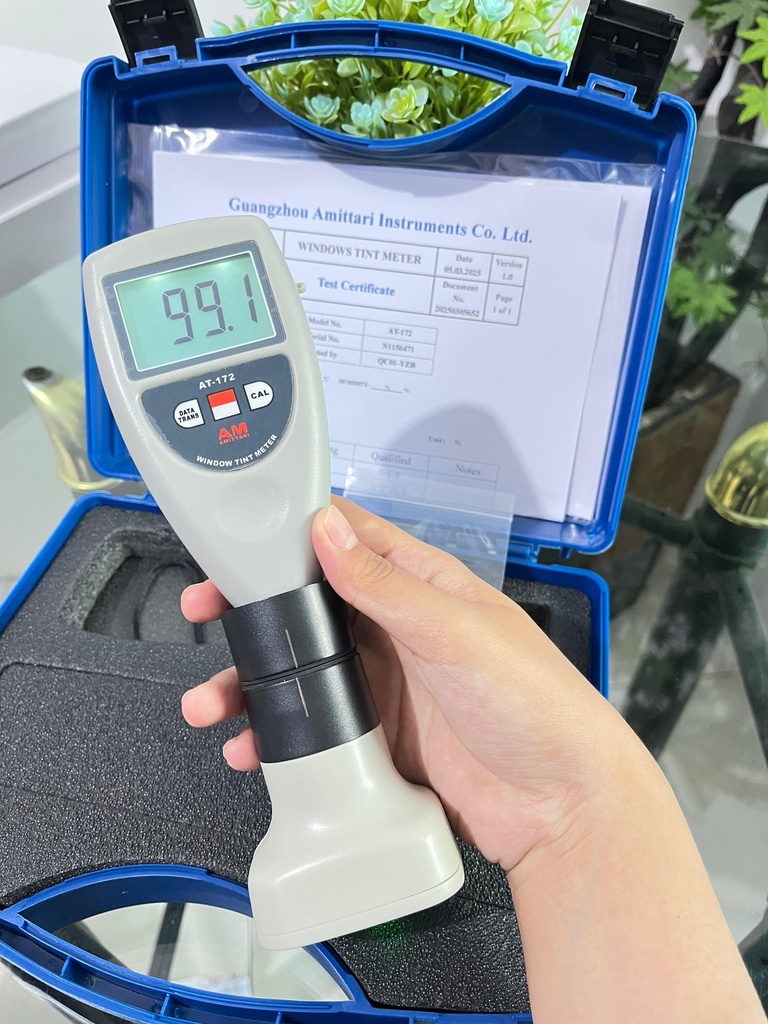

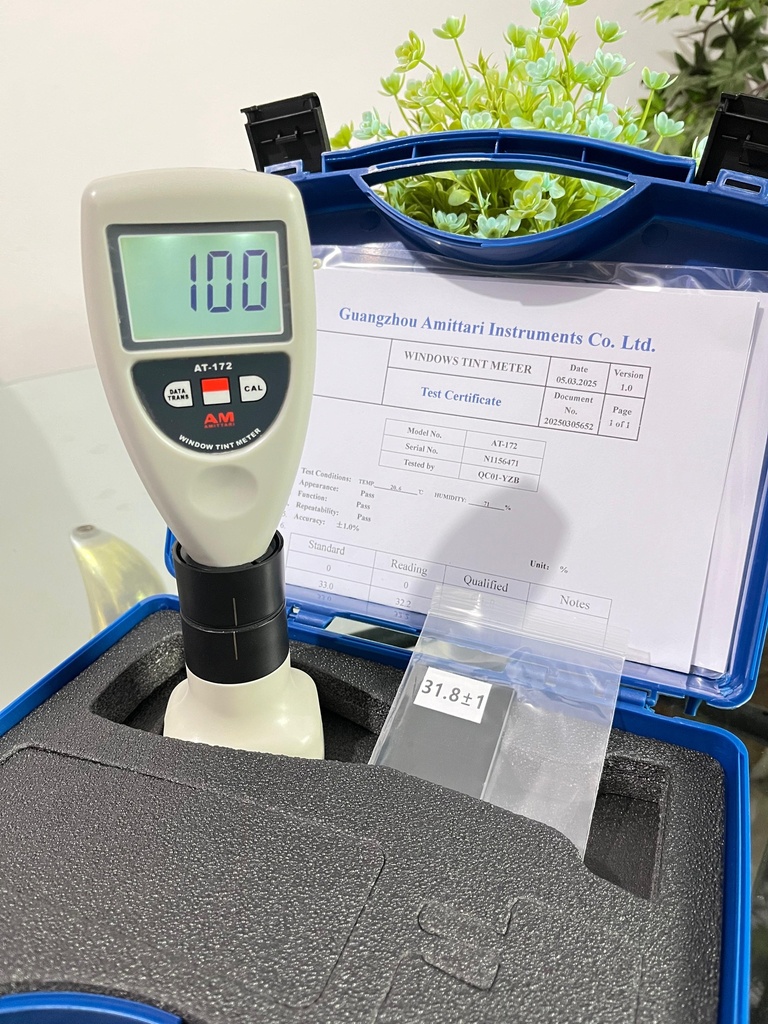

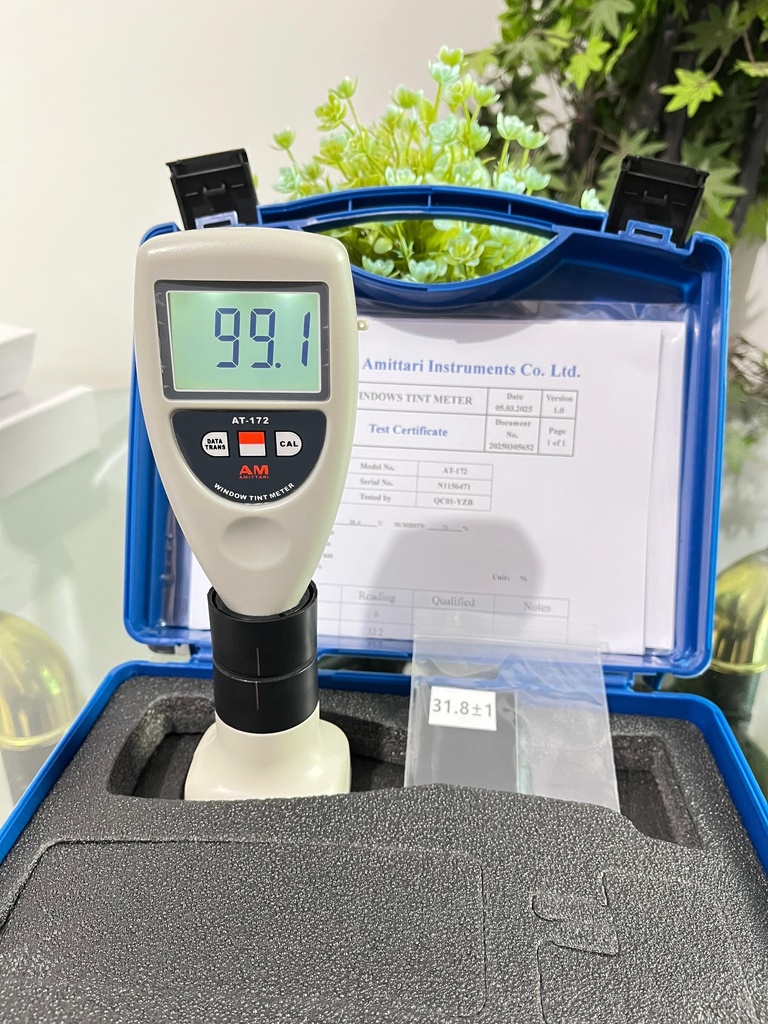

Window Tint Meter Tester (Wireless Type) AT-172 Amittari

Window Tint Meter Tester (Wireless Type)
Model : AT-172
Brand : Amittari

The Window Tint Meter is applicable to measure the transmittance of all kinds of transparent, translucent samples with parallel plane (such as automobile manufacturing, aerospace, glass products, plastic sheet, sheet, etc). Also can be used to determine the turbidity or clarity of liquid sample (water, drinks and so on).

Product Feature

* This Window Tint Meter is a hand held device that mea- sures the amount of light that passes through a window.

* Technology is designed in accordance with GB 2410-80, ASTM D1033-61, JIS k7105-81 and other standards.

* Digital display, wide measurement range, high resolution.

* Wireless design, easy to use.

* One key calibration, easy to use.

* Solid structure, exquisite, easy to carry, small volume, light weight.

* Use USB data output to connect with PC.
* Provide Bluetooth data output choice


Product Parameters

Measuring range : 0 to 100% Light Transmission
Resolution : 0.1
Accuracy : ±2%

Light Source : LED
Sample Thickness : Less than 18 mm/0.7inch
Operating Conditions : Temperature : 0~50°C
Humidity: below 90% RH

Power Supply:
Main Unit: 2x1.5v Um-4 Battery
Light Emitter: 2x1.5v Um-4 Battery

Size :
Main Unit: 141x65x38mm
Light Emitter: 70x62x52mm

Weight :
290 g (Including batteries)

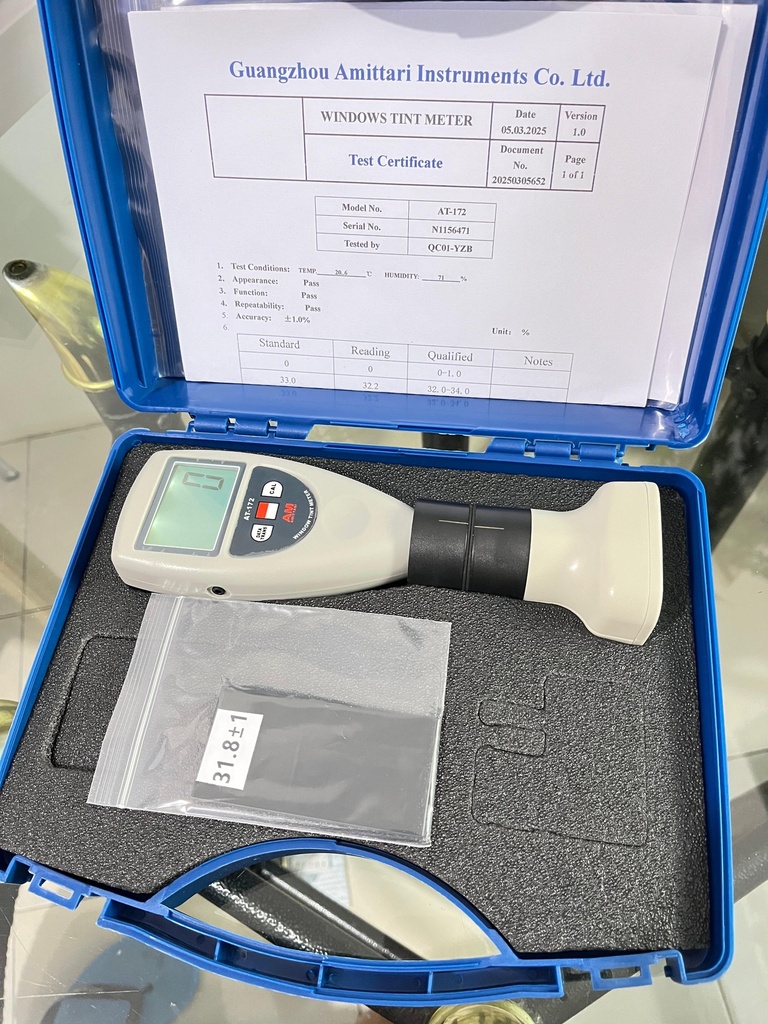

Product Accessories :

Standard Accessories

Main Unit
Light Emitter

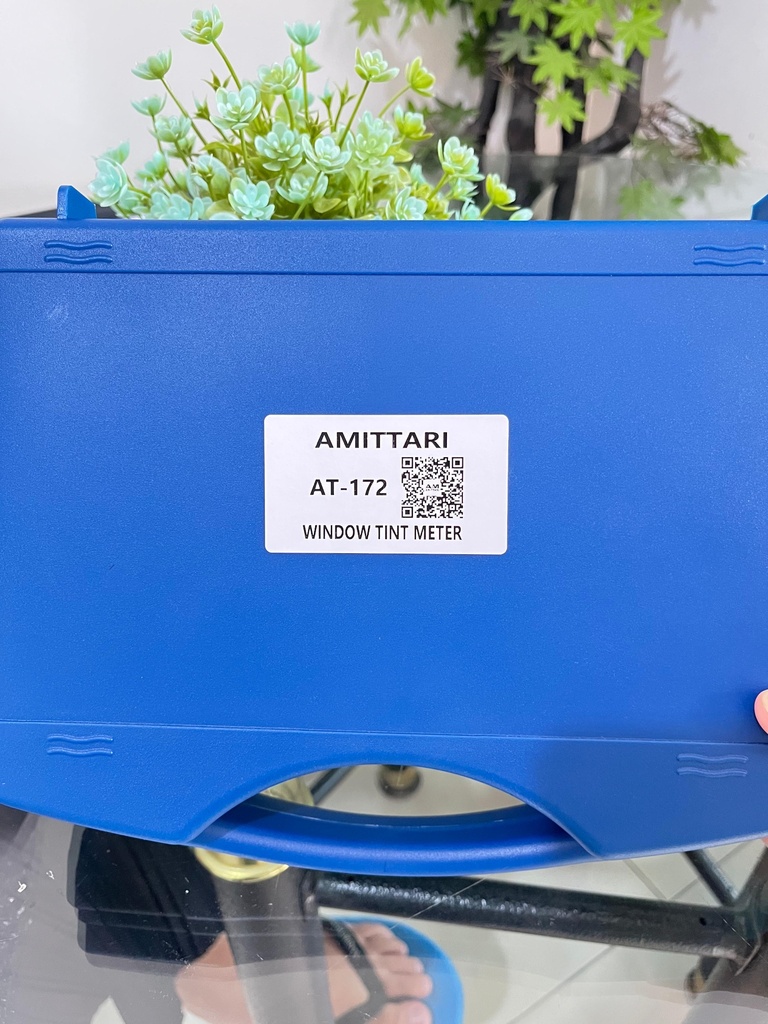

Carrying Case
Operation Manual

Optional Accessories

USB Data Output
Bluetooth Data Output
